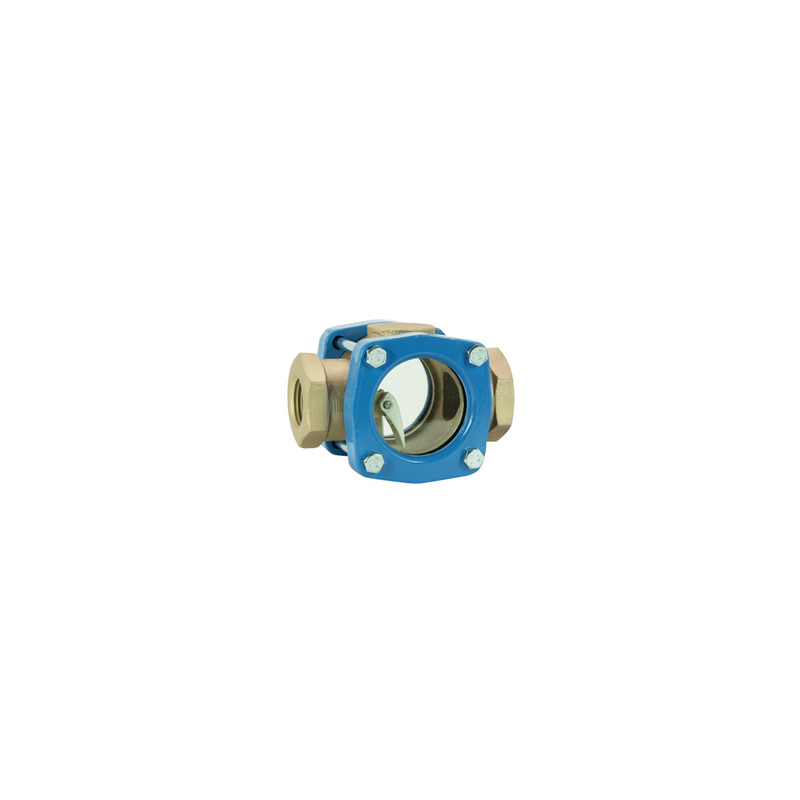

Flow Indicator FK-...GR

Review (0)

Flow Indicator FK-...GR

● High temperature resistance
● Double-sided large-surface window
● Natural glass
● Visualisation of the flow rate

Characteristics :

Mechanical flow indicator for fluid media. A plastic flap in the area
of flow is lifted by the volume flow, and indicates the present flow
rate.

Mechanical flow indicator for fluid media. A plastic flap in the area
of flow is lifted by the volume flow, and indicates the present flow
rate.

Référence FK-015..050GR

Fiche technique

Ambient temperature: 20..+100 °C
Nominal width: DN 15..50
Process connection: female thread G 1/2..G 2
Qmax: to 250 l/min
Materials medium-contact: cast tin bronze, grey iron, crown hardened glass, Flexicarb with nickel reinforcement, 1.4436, PA 6.6
Media temperature: 0..+100 °C water -20..+170 °C oil
Medium: water (oils available on request)
