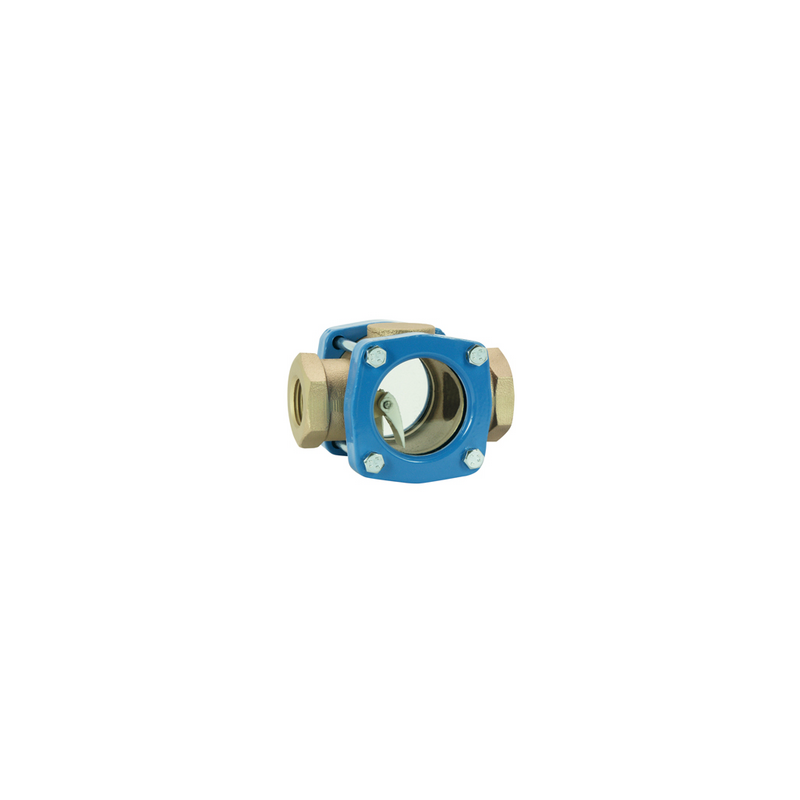

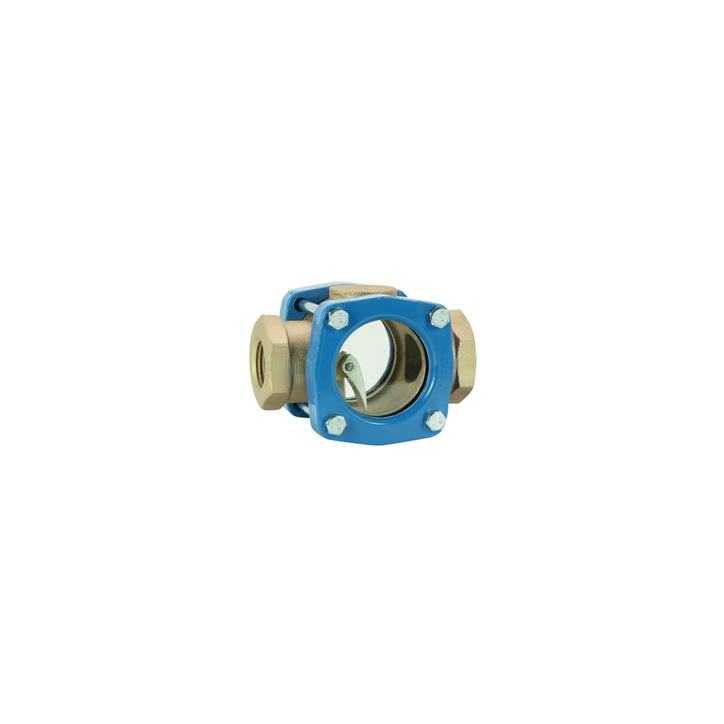

Indicateur de débit FK-...GR
Flow Indicator FK-...GR
● High temperature resistance
● Double-sided large-surface window
● Natural glass
● Visualisation of the flow rate
Characteristics :
Mechanical flow indicator for fluid media. A plastic flap in the area
of flow is lifted by the volume flow, and indicates the present flow
rate.
Garanties sécurité
Politique de livraison
Politique retours
Mechanical flow indicator for fluid media. A plastic flap in the area
of flow is lifted by the volume flow, and indicates the present flow
rate.
FK-015..050GR
Fiche technique
- Ambient temperature
- 20..+100 °C
- Nominal width
- DN 15..50
- Process connection
- female thread G 1/2..G 2
- Qmax
- to 250 l/min
- Materials medium-contact
- cast tin bronze, grey iron, crown hardened glass, Flexicarb with nickel reinforcement, 1.4436, PA 6.6
- Media temperature
- 0..+100 °C water -20..+170 °C oil
- Medium
- water (oils available on request)
