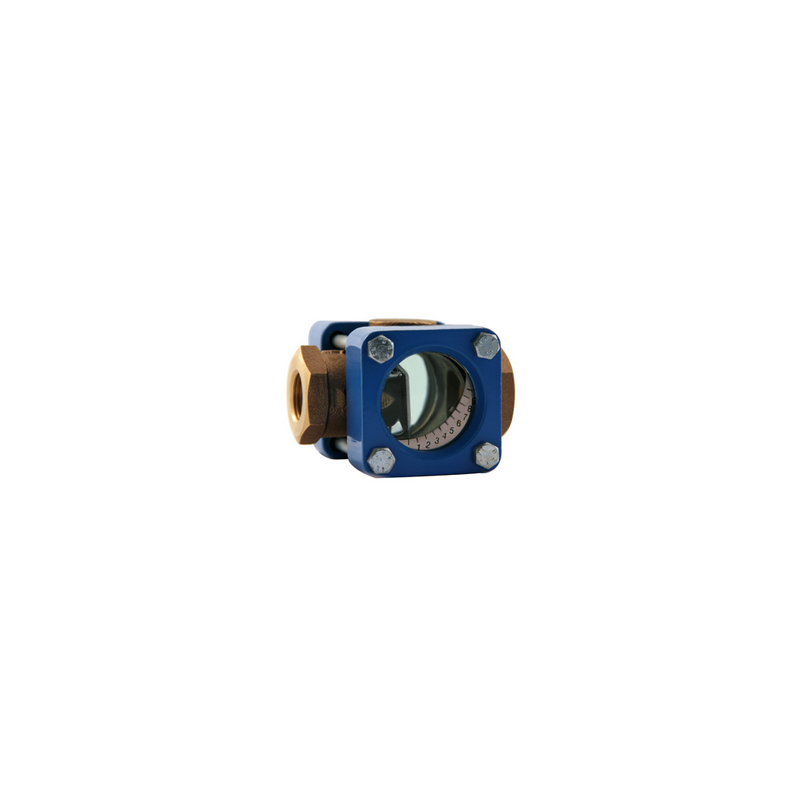

Indicateur de débit SK-...GR
Flow Indicator SK-...GR
● High temperature resistance
● Double-sided large-surface window
● Natural glass
● Display of flow rate
Characteristics :
Mechanical flow indicator for fluid media. A stainless steel flap in the area of flow is lifted by the volume flow, and indicates the present flow rate.
Garanties sécurité
Politique de livraison
Politique retours
Mechanical flow indicator for fluid media.
A stainless steel flap in the area of flow is lifted by the volume flow, and indicates the present flow rate.
SK-015...050GR
Fiche technique
- Ambient temperature
- -20..+100 °C
- Nominal width
- DN 15..50
- Process connection
- female thread G 1 /2..G 2
- Materials medium-contact
- cast tin bronze, grey iron, crown hardened glass, Flexicarb with nickel reinforcement, 1.4436, PA 6.6
- Qmax
- to 250 l/min
- Pressure resistance
- PN 16 bar
- Installation location
- Standard: Horizontal inwards flow from the left; optionally inwards flow from below, installation position affects the range.
- Media temperature
- 0..+100 °C water/-20..+170 °C oil
