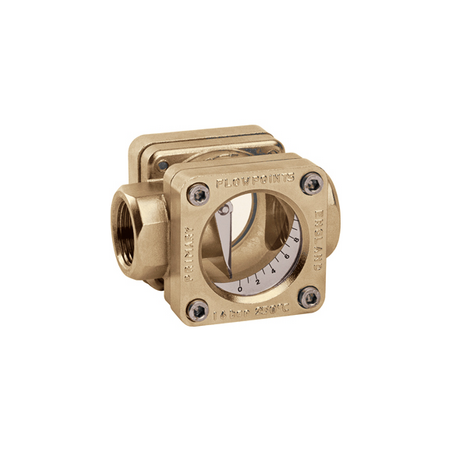

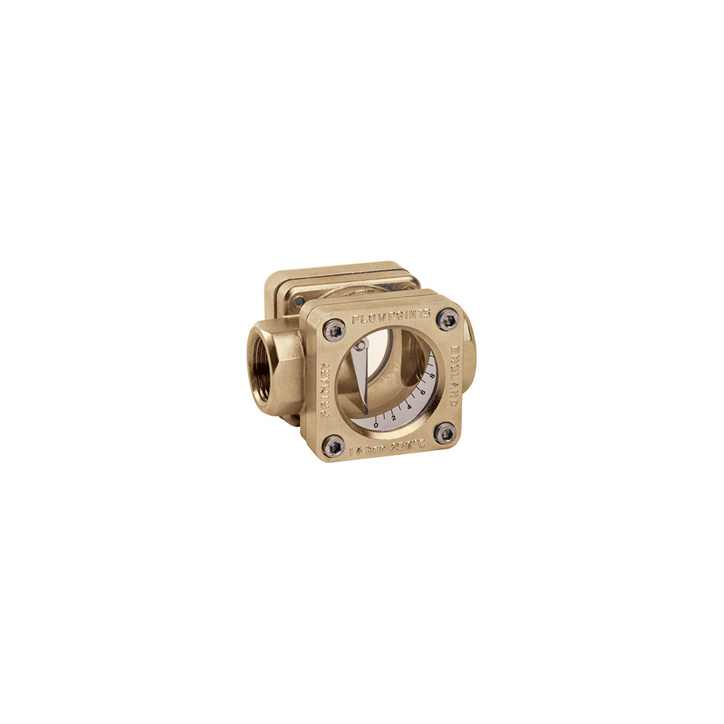

Flow Indicator FQ-...GR
Flow Indicator FQ-...GR
● High temperature resistance
● Double-sided large-surface window
● Natural glass
● Display of flow rate
Characteristics :
Mechanical flow indicator for fluid media. A stainless steel flap in the area of flow is lifted by the volume flow, and indicates the present flow rate
Garanties sécurité
Politique de livraison
Politique retours
Mechanical flow indicator for fluid media. A stainless steel flap in the area of flow is lifted by the volume flow, and indicates the present flow rate
FQ-015..025GR
Fiche technique
- Ambient temperature
- -20..+100 °C
- Nominal width
- DN 15.0.25
- Process connection
- female thread G 1 /2..G 1
- Qmax
- to 65 l/min
- Pressure resistance
- PN 16 bar
- Materials medium-contact
- Rg 5, CW614N, 1.4310, 1.4305, Soda lime glass, Klingersil C4400
- Non-mediumcontact materials
- aluminium
- Installation location
- Standard: Horizontal inwards flow from the left; optionally inwards flow from below, installation position affects the range.
- Media temperature
- 0..+100 °C water/-20..+200 °C oil
