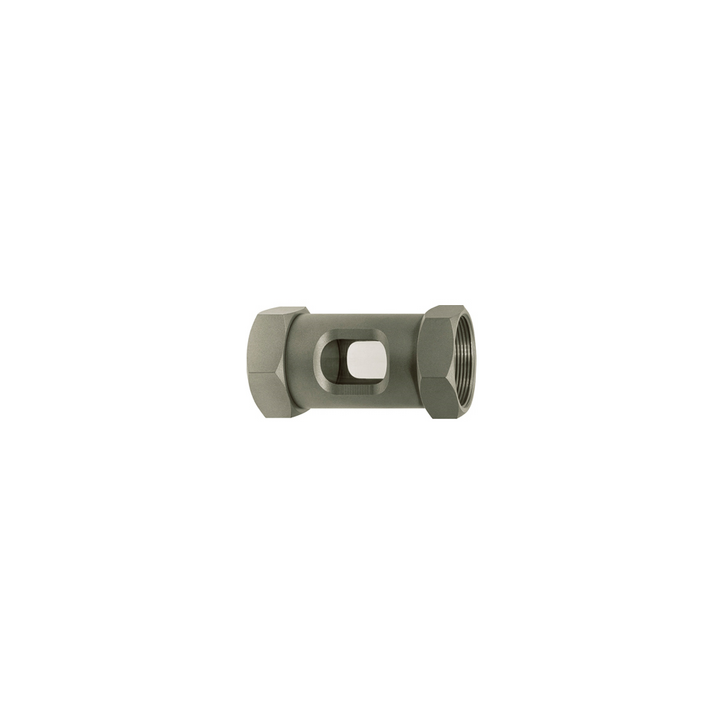

Flow Indicator OW-...GM
Technical Data WO1-...GM/K
● No moving parts internally
● Installation location as desired
● For heavily soiled or coloured fluids
● Natural glass, acrylic glass
Characteristics :
Devices made from solid brass, where the medium can be visually examined through the sight glass (fluid level, colour, bubbles,...)
Garanties sécurité
Politique de livraison
Politique retours
Devices made from solid brass, where the medium can be visually examined through the sight glass (fluid level, colour, bubbles,...)
OW-008..050GM
Fiche technique
- Medium temperature
- 20..+70 °C
- Ambient temperature
- -20..+70 °C
- Nominal width
- DN 8..50
- Process connection
- female thread G 1 /4..G 2
- Materials medium-contact
- DN 8..15 - CW614N pickled, natural glass DN 25..50 - CW614N nickelled, acrylic glass
- Qmax
- G 1 /4 - 15 l/min G 3 /8 - 20 l/min G 1 /2 - 30 l/min G 1 - 90 l/min G 11 /2 - 220 l/min G 2 - 250 l/min
- Pressure resistance
- PN 6 bar
- Installation location
- As desired
- Medium
- Water, Oils
