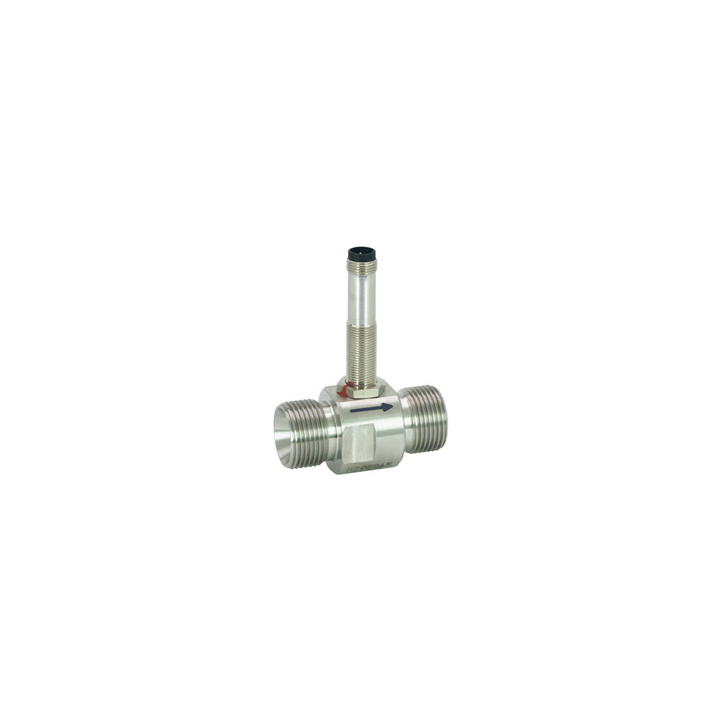

Flow Transmitter LABO-RT-I / U / F / C
Flow Transmitter LABO-RT-I / U / F / C
● High precision
● No magnetic components in the flow space
● High pressure resistance
● 0..10 V, 4..20 mA , frequency/pulse output, completely configurable
Characteristics :
A turbine acts as the primary sensor; its rotational speed is proportional to the flow rate. The rotational speed is detected by means of pre-tensioned Hall sensors, i.e. there are no magnets in the flow space. The LABO-RT electronics make various output signals available:
● Analog signal 0/4..20 mA (LABO-RT-I)
● Analog signal 0/2..10 V (LABO-RT-U)
● Frequency signal (LABO-RT-F) or
● Value signal pulse / x litres (LABO-RT-C)
A model with switching output is also available (see separate datasheet).
If desired, the range end value can be set to the currently existing flow using "teaching"
Garanties sécurité
Politique de livraison
Politique retours
A turbine acts as the primary sensor; its rotational speed is proportional to the flow rate. The rotational speed is detected by means of pre-tensioned Hall sensors, i.e. there are no magnets in the flow space. The LABO-RT electronics make various output signals available:
● Analog signal 0/4..20 mA (LABO-RT-I)
● Analog signal 0/2..10 V (LABO-RT-U)
● Frequency signal (LABO-RT-F) or
● Value signal pulse / x litres (LABO-RT-C)
A model with switching output is also available (see separate datasheet).
If desired, the range end value can be set to the currently existing flow using "teaching"
LABO-RT-I / U / F / C
Fiche technique
- Medium temperature
- -20..+85 °C optionally -20..+150 °C (for 8 bar min.)
- Ambient temperature
- -20..+70 °C
- Sensor
- turbine with biased Hall sensor
- Nominal width
- DN 15..50 (others on request)
- Process connection
- G 1 /2 A...G 2 A
- Metering ranges
- see table "Ranges"
- Measurement accuracy
- ±1 % of full scale value in the specified metering range including linearity and repeatability
- Storage temperature
- -20..+80 °C
- Max. particle size
- 0,5mm
- Pressure loss (average)
- 0.3 bar at Qmax.
