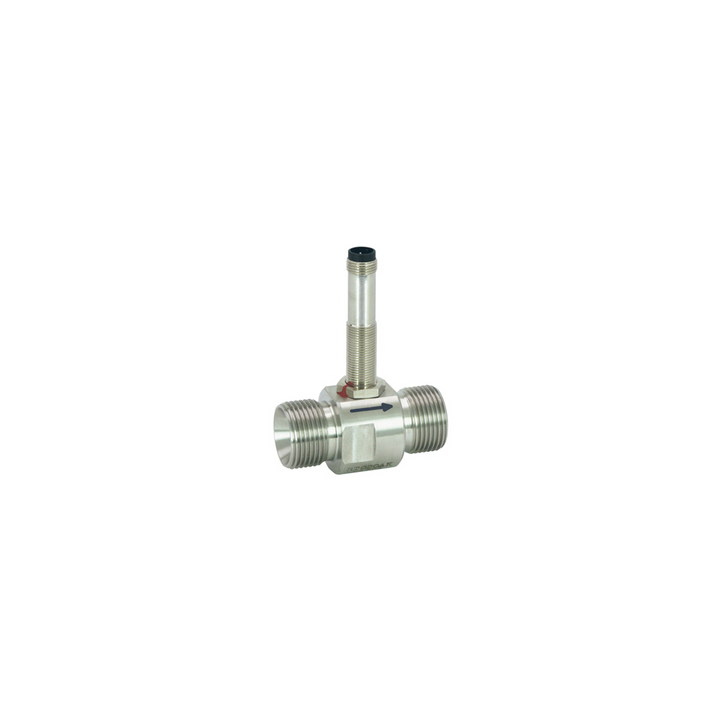

Flow Transmitter RT-...AK
Flow Transmitter RT-...AK
● High precision
● No magnetic components in the flow space
● High pressure resistance
Characteristics :
A turbine acts as the primary sensor; its rotational speed is proportional to the flow rate.
The rotational speed is detected by means of a biased Hall sensors, i.e. there are no magnets in the flow space.
Garanties sécurité
Politique de livraison
Politique retours
A turbine acts as the primary sensor; its rotational speed is proportional to the flow rate.
The rotational speed is detected by means of a biased Hall sensors, i.e. there are no magnets in the flow space.
RT-...AK
Fiche technique
- Medium temperature
- 20..+85 °C optionally -20..+150 °C (for 8 bar min.)
- Ambient temperature
- -20..+70 °C
- Sensor
- biased Hall sensor
- Nominal width
- DN 15..50
- Process connection
- male thread G 1 /2 A...G 2 A
- Metering ranges
- 1.8..1133 l/min for details, see table "Ranges"
- Measurement accuracy
- ±1 % of full scale value in the specified metering range, including linearity and repeatability
- Storage temperature
- -20..+80 °C
- Pressure loss (average)
- 0.3 bar at Qmax
Références spécifiques
Aucun commentaire pour le moment
Flow Transmitter RT-...AK
● High precision
● No magnetic components in the flow space
● High pressure resistance
Characteristics :
A turbine acts as the primary sensor; its rotational speed is proportional to the flow rate.
The rotational speed is detected by means of a biased Hall sensors, i.e. there are no magnets in the flow space.
