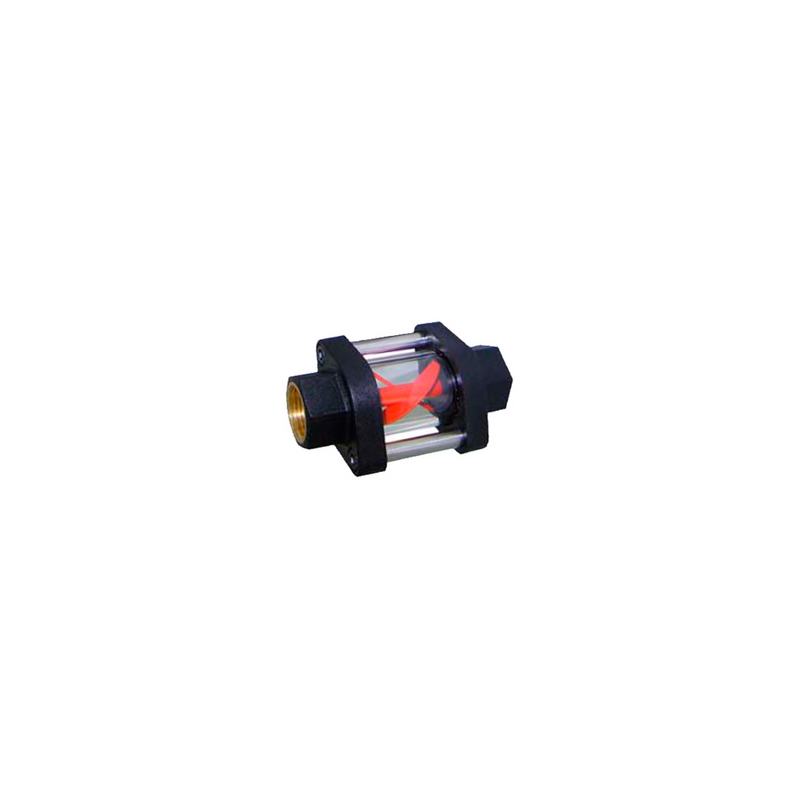

Flow Indicator HV

The flow indicator HV is used for the reliable display of transparent
fluids. A signal-red turbine wheel rotates in a glass tube
proportional to the flow, and in this way provides an indication of
the flow rate present.
The devices provide 360 ° vision, and are built for a long working
life, thanks to the design of the turbine's bearings.

Technical data :

Nominal width              : DN 8..25

Process
connection                   : female thread G 1/4..G 1

Display range              : 0.6..50 l/min

Qmax.                          : to 50 l/min

Pressure
resistance                   : PN 10 bar

Medium
temperature               : -20..+100 °C

Ambient
temperature               : -20..+70 °C

Materials
medium-contact         : body                              :PPh

                                     process connection      : brass

                                     turbine                          : PPh

                                     Axis                               : PPh

                                     Axis bushes                  : 1.4301

                                     glass                             : borosilitcate

                                     seals                             : NBR

Medium water            : (oils have a tendency to a higher rotor start-up value)

Installation location  : as desired, except for inwards flow from above
