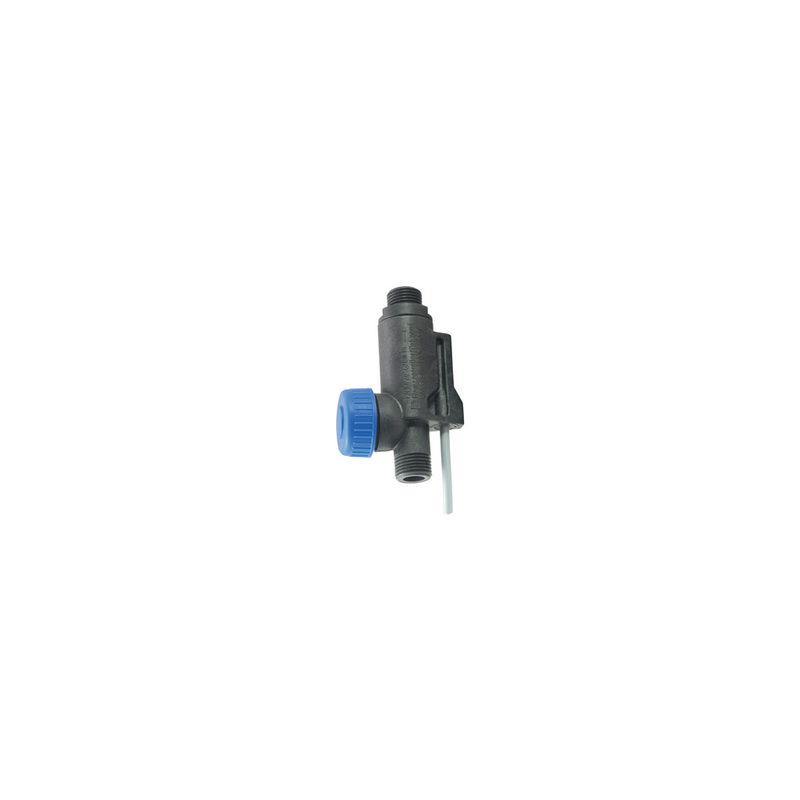

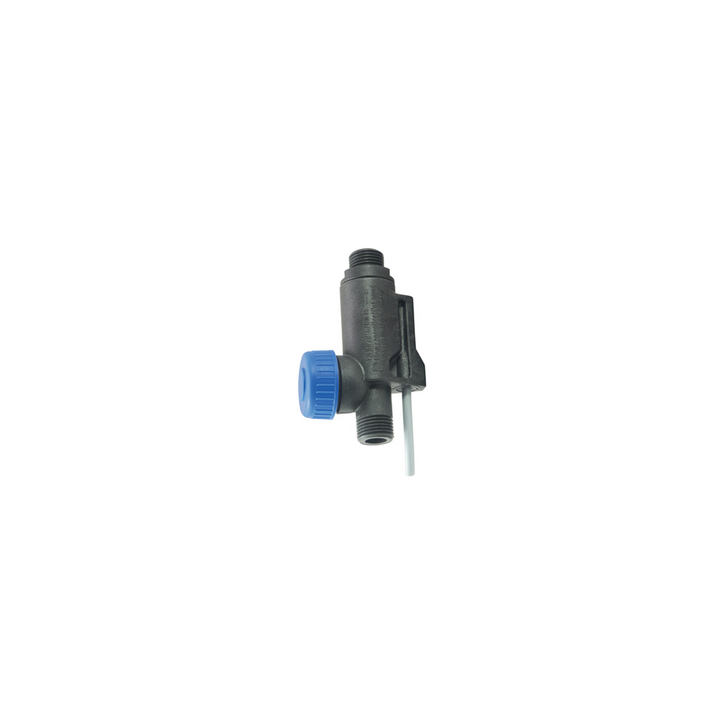

Mechanical flow switch, for fluid media, with magnetic triggering of a reed switch. Plastic housing with integrated filter.

● Adjusted switching value
● Integrated filter
● High switching power
● Optional flow limiter in the outlet piece

Handling and operation

● Include straight calming section of 5 x DN in inlet and outlet
● It must be ensured that the values given for voltage, current,
and power are not exceeded.
● When switch on, a load must be connected in series.
● The electrical details apply to ohmic loads. Capacitive,
inductive and lamp loads must be operated using a protective circuit.

Switch                               :   reed switch

Nominal width                  :  DN 15

Process connection          : male thread G 1/2 A
                                          (note: For plastic parts it is not possible to guarantee trueness of calibration)

Switching range               : 0.4..12 l/min

Pressure loss                   : 0.75..1.1 bar at Qmax.

Qmax.                               : 12 l/min

Tolerance                          : ±15 % of full scale value

Pressure resistance          : PN 10 bar

Media temperature           : -20..+70 °C (80 °C at 6 bar)

Ambient temperature        : -20..+70 °C

Media                                : water

Switching voltage              : max. 230 V AC

Switching current               : max. 1 A

Switching capacity              : max. 50 VA

Protection class                  : 2 - safety insulation

Ingress protection              : IP 65

Electrical connection           : cable 0.5 m
