● High switching power
● Compact design

Characteristics :

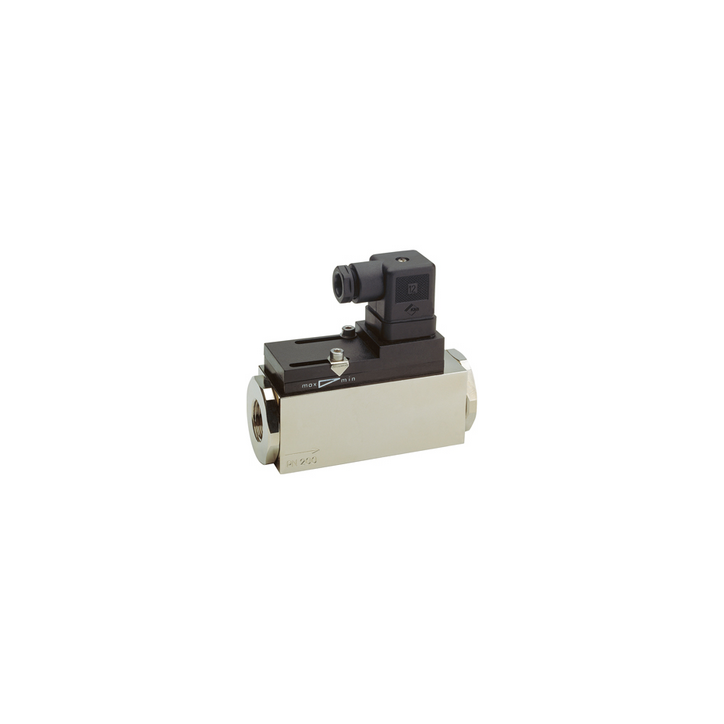

Mechanical flow switch, for fluid or gaseous media, with
spring-supported piston and magnetic triggering of a reed switch.
Robust construction in brass or stainless steel.

Handling and Operation
Note
● Include straight calming section of 5 x DN in inlet and outlet
● Include a filter if the media are dirty (use magnetic filter for
ferritic components).
● It must be ensured that the values given for voltage, current,
and power are not exceeded.
● When switch on, a load must be connected in series.
● The electrical details apply to ohmic loads. Capacitive,
inductive and lamp loads must be operated using a protective circuit.

Adjustment
If it is necessary to set the switching value,
the switching head can be adjusted
lengthways.

Technical data :

Switch                                   : reed switch

Nominal width                      : DN 8..25

Process connection              : female thread G 1/4..G 1 (further process connections available on request)

Switching range                   : 0.4..60 l/min

Pressure loss                       : 0.4..1.4 bar at Qmax

Qmax.                                  : to 80 l/min

Tolerance                            : ±5 % of full scale value

Pressure resistance              : PN 200 bar optionally PN 500 bar

Media temperature                : -20..+120 ℃ optionally -20..+150 °C

Ambient temperature           : -20..+70 °C

Media                                    : water (oils, gases and aggressive media available on request
