Capteur de pression relative numérique avec raccord fileté manométrique G½B (par ex. pour PRO D0x)
keyboard_arrow_rightkeyboard_arrow_left

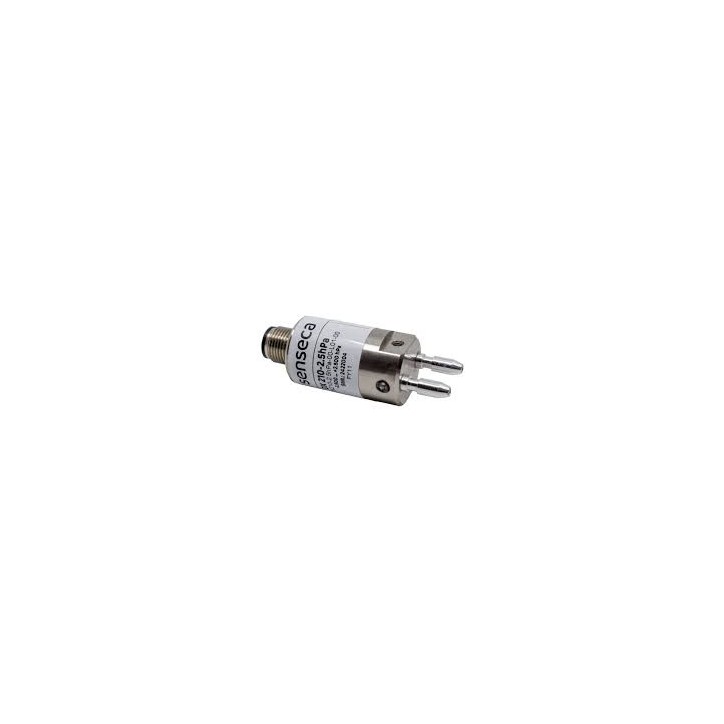

Capteur de pression relative numérique avec raccord fileté manométrique G½B (par ex. pour PRO D0x)

Review (0)
Protection class:
IP67
Output:
DX-Sensor-Interface, interchangeable without loss of accuracy
Weight:
280 g
Material:
Stainless steel
Sensor:
<=40 bar: piezoresistive; >40 bar: thin film cell
Measuring range:
1 … 1000 bar rel.
Resolution:
Depending on sensor model
Accuracy:
±0.1 %FS
Compensated temperature:
-0 ... +60 °C
Operating conditions:
-20…+60 °C / 0…95% RH non-condensing
Storage temperature:
-20…+80 °C
Overpressure:
< 25 bar: 3-fold; > 25 ... ≤ 600 bar: 2-fold
Measurement rate:
normal: 1 /s, fast: Internally 50 /s
Housing material:
Stainless steel
Donnez votre avis
EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118
  • Garanties sécuritéGaranties sécurité
  • Politique de livraisonPolitique de livraison
  • Politique retoursPolitique retours
Article no. Order Code Measuring range Calibration Pressure connection Media Scope of delivery minimal quantity Product comparison
489424DX 225-M1/3bar-00-L1 DX225-M1/3bar-00-L1 -1000 ... 3000 hPa rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489425DX 225-1bar-00-L1 DX225-1bar-00-L1 0 ... 1000 hPa rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489426DX 225-2.5bar-00-L1 DX225-2.5bar-00-L1 0 ... 2500 hPa rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489427DX 225-4bar-00-L1 DX225-4bar-00-L1 0 ... 4000 hPa rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489428DX 225-6bar-00-L1 DX225-6bar-00-L1 0 ... 6000 hPa rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489429DX 225-10bar-00-L1 DX225-10bar-00-L1 0.00 ... 10.00 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489430DX 225-25bar-00-L1 DX225-25bar-00-L1 0.00 ... 25.00 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489431DX 225-40bar-00-L1 DX225-40bar-00-L1 0.00 ... 40.00 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489432DX 225-60bar-00-L1 DX225-60bar-00-L1 0.00 ... 60.00 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489433DX 225-100bar-00-L1 DX225-100bar-00-L1 0.0 ... 100.0 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489434DX 225-250bar-00-L1 DX225-250bar-00-L1 0.0 ... 250.0 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489435DX 225-400bar-00-L1 DX225-400bar-00-L1 0.0 ... 400.0 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489436DX 225-600bar-00-L1 DX225-600bar-00-L1 0.0 ... 600.0 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489438DX 225-1000bar-00-L1 DX225-1000bar-00-L1 0.0 ... 1000.0 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
Senseca
DX225
