A KP pressure switch can be connected directly

to a single-phase AC motor of up to approx. 2 kW

or installed in the control circuit of DC motors

and large AC motors.

KP pressure switches are fitted with a single-pole

double-throw (SPDT) switch. The position of

the switch is determined by the pressure switch

setting and the pressure at the connector.

KP pressure switches are available

in IP30, IP44 and IP55 enclosures.

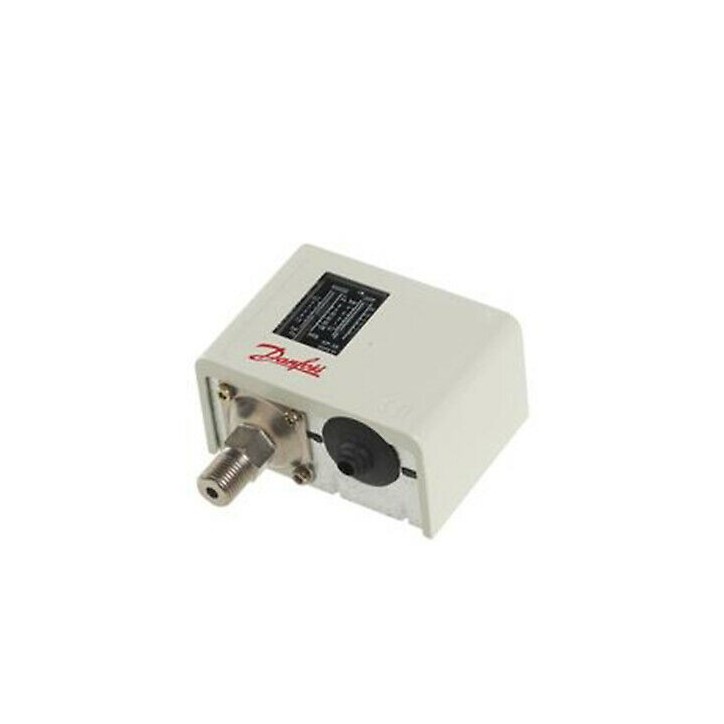

Type                             :  KP 15

Low pressure (LP)

Regulating range [bar]   : -0.9 – 7.0

Differential Δp [bar]       :  0.7

High pressure (HP)

Regulating range [bar]   : 8 – 32

Differential Δp [bar]       : 4

Reset

 Low pressure LP            : Conv.3)

High pressure HP           : Conv.3)

Contact system              : SPDT + LP signal
