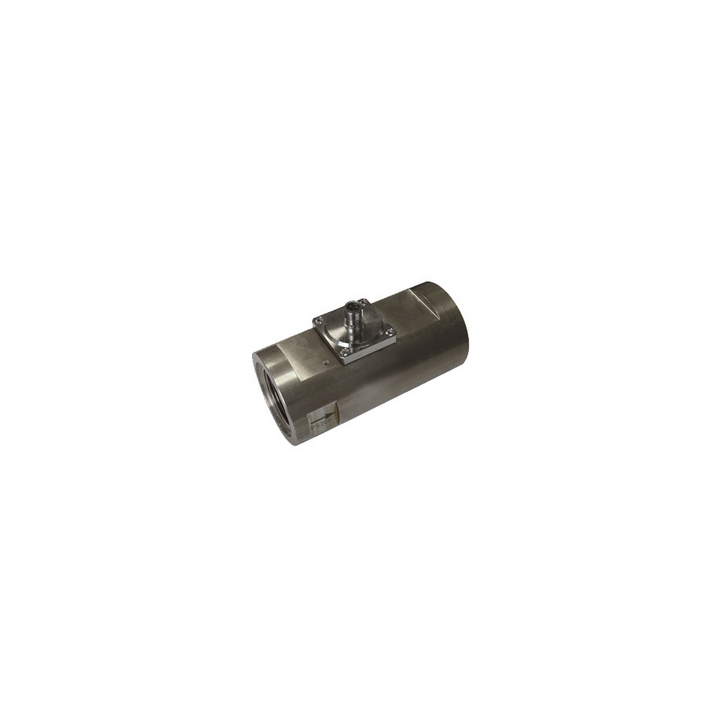

Flow Transmitter/Switch
Flow Transmitter/Switch
● 4..20 mA output linearised
● 0..10V output linearised
● Frequency output proportional, linear
● Programmable through teaching
● LED for status display
● All metal housing
● Fully potted IP 67
● All parameters programmable via USB interface ECI-1
Characteristics
Mechanical flow switch, for oil, with spring-supported piston and
magnetic triggering of Hall sensors. Robust construction in brass or
stainless steel.
The LABO electronics make various output signals available:
● Analog signal 0/4...20 mA (LABO-HD2K-...I)
● Analog signal 0/2..10 V (LABO-HD2K-...U)
● Frequency signal (LABO-HD2K-...F) or
● A value signal Pulse / x Litres (LABO-HD2K-...C)
A model with switching output is also available.
If desired, the range end value can be set to the currently existing
flow using "teaching".
Garanties sécurité
Politique de livraison
Politique retours
Flow Transmitter/Switch
● 4..20 mA output linearised
● 0..10V output linearised
● Frequency output proportional, linear
● Programmable through teaching
● LED for status display
● All metal housing
● Fully potted IP 67
● All parameters programmable via USB interface ECI-1
Characteristics
Mechanical flow switch, for oil, with spring-supported piston and
magnetic triggering of Hall sensors. Robust construction in brass or
stainless steel.
The LABO electronics make various output signals available:
● Analog signal 0/4...20 mA (LABO-HD2K-...I)
● Analog signal 0/2..10 V (LABO-HD2K-...U)
● Frequency signal (LABO-HD2K-...F) or
● A value signal Pulse / x Litres (LABO-HD2K-...C)
A model with switching output is also available.
If desired, the range end value can be set to the currently existing
flow using "teaching".
Ranges :
Details in the table apply to horizontal inwards flow with increasing
flow rate.
LABO-HD2K-I / U / F / C
Fiche technique
- Ambient temperature
- -20..+70 °C
- Sensor
- analog Hall sensors
- Nominal width
- DN 8..25
- Process connection
- female thread G 1/4..G 1
- Metering ranges
- 0.5..60 l/min
- Pressure loss (average)
- 1.1..3.5 bar at Qmax.
- Supply voltage
- 18..30 V DC
- Qmax
- To 80 l/min
- Tolerance
- ±3 % of full scale value
- Pressure resistance
- PN 200 bar, optionally PN 500 bar
- Media
- oils
- Media temperature
- -20..+85 °C optionally -20..+120 °C
